카프카 쿠폰 선착순 발급, k6 부하테스트

카프카 설정

config

package com.inflearn.kafka.config;

import org.apache.kafka.clients.consumer.ConsumerConfig;
import org.apache.kafka.clients.producer.ProducerConfig;
import org.apache.kafka.common.serialization.LongDeserializer;
import org.apache.kafka.common.serialization.LongSerializer;
import org.apache.kafka.common.serialization.StringDeserializer;
import org.apache.kafka.common.serialization.StringSerializer;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.kafka.config.ConcurrentKafkaListenerContainerFactory;
import org.springframework.kafka.core.*;

import java.util.HashMap;
import java.util.Map;

@Configuration
public class KafkaConfig {


    @Bean
    public KafkaTemplate<String, String> kafkaTemplate() {
        return new KafkaTemplate<>(producerFactory());
    }

    @Bean
    public ProducerFactory<String, String> producerFactory() {
        Map<String, Object> config = new HashMap<>();
        config.put(ProducerConfig.BOOTSTRAP_SERVERS_CONFIG, "localhost:9092");
        config.put(ProducerConfig.KEY_SERIALIZER_CLASS_CONFIG, StringSerializer.class);
        config.put(ProducerConfig.VALUE_SERIALIZER_CLASS_CONFIG, StringSerializer.class); // Long 직렬화
        return new DefaultKafkaProducerFactory<>(config);
    }

    @Bean
    public ConsumerFactory<String, Long> consumerFactory() {
        Map<String, Object> config = new HashMap<>();
        config.put(ConsumerConfig.BOOTSTRAP_SERVERS_CONFIG, "localhost:9092");
        config.put(ConsumerConfig.GROUP_ID_CONFIG, "group_1");
        config.put(ConsumerConfig.KEY_DESERIALIZER_CLASS_CONFIG, StringDeserializer.class);
        config.put(ConsumerConfig.VALUE_DESERIALIZER_CLASS_CONFIG, LongDeserializer.class); // Long 역직렬화
        return new DefaultKafkaConsumerFactory<>(config);
    }

    @Bean
    public ConcurrentKafkaListenerContainerFactory<String, Long> kafkaListenerContainerFactory() {
        ConcurrentKafkaListenerContainerFactory<String, Long> factory =
                new ConcurrentKafkaListenerContainerFactory<>();
        factory.setConsumerFactory(consumerFactory());
        return factory;
    }

}



프로듀서

package com.inflearn.kafka.repository;

import lombok.RequiredArgsConstructor;
import lombok.extern.slf4j.Slf4j;
import org.springframework.kafka.core.KafkaTemplate;
import org.springframework.stereotype.Component;

@Slf4j
@Component
@RequiredArgsConstructor
public class CouponCreateProducer {
    private static final String TOPIC_NAME = "create-coupon";

    private final KafkaTemplate<String, Long> kafkaTemplate;

    public void create(Long userId) {
        log.info("메세지 발행 ");
        try {
            kafkaTemplate.send(TOPIC_NAME, userId);
            log.info("메세지 발행 완료");
        } catch (Exception e) {
            log.error("메시지 발행 실패 - userId: {}", userId, e);
            throw new RuntimeException("Kafka 메시지 발행 실패", e);
        }
    }

}



컨슈머

package com.inflearn.kafka.repository;

import com.inflearn.kafka.domain.Coupon;
import lombok.RequiredArgsConstructor;
import lombok.extern.slf4j.Slf4j;
import org.springframework.boot.context.event.ApplicationStartedEvent;
import org.springframework.context.event.EventListener;
import org.springframework.kafka.annotation.KafkaListener;
import org.springframework.stereotype.Component;

@Component
@RequiredArgsConstructor
@Slf4j
public class CouponCreatedConsumer {
    private final CouponRepository couponRepository;

    @KafkaListener(topics = "create-coupon", groupId = "group_1")
    public void listener(Long userId) {
        try {
            log.info("쿠폰 생성 시작 - userId: {}", userId);

            couponRepository.save(new Coupon(userId));

            log.info("쿠폰 생성 완료 - userId: {}", userId);
        } catch (Exception e) {
            log.error("쿠폰 생성 실패 - userId: {}", userId, e);
            // 재시도 정책에 따라 예외를 던질지 말지 결정
            throw new RuntimeException("쿠폰 생성 실패", e);
        }
    }
}



docker-compose.yaml

version: '2'

services:
  zookeeper:
    image: confluentinc/cp-zookeeper:latest
    container_name: zookeeper
    environment:
      ZOOKEEPER_SERVER_ID: 1
      ZOOKEEPER_CLIENT_PORT: 2181
      ZOOKEEPER_TICK_TIME: 2000
      ZOOKEEPER_INIT_LIMIT: 5
      ZOOKEEPER_SYNC_LIMIT: 2
    ports:
      - "2181:2181"

  kafka:
    image: confluentinc/cp-kafka:latest
    container_name: kafka
    depends_on:
      - zookeeper
    ports:
      - "9092:9092"
    environment:
      KAFKA_BROKER_ID: 1
      KAFKA_ZOOKEEPER_CONNECT: 'zookeeper:2181'
      KAFKA_ADVERTISED_LISTENERS: PLAINTEXT://localhost:29092,PLAINTEXT_HOST://localhost:9092
      KAFKA_LISTENER_SECURITY_PROTOCOL_MAP: PLAINTEXT:PLAINTEXT,PLAINTEXT_HOST:PLAINTEXT
      KAFKA_INTER_BROKER_LISTENER_NAME: PLAINTEXT
      KAFKA_OFFSETS_TOPIC_REPLICATION_FACTOR: 1
      KAFKA_GROUP_INITIAL_REBALANCE_DELAY_MS: 0

  redis:
    image: redis:latest
    container_name: redis
    ports:
      - "6379:6379"
    volumes:
      - redis_data:/data

volumes:
  redis_data:





토픽 생성

docker exec -it kafka /bin/kafka-topics --bootstrap-server localhost:9092 --create --topic create-coupon --partitions 1 --replication-factor 1

프로듀서  (메세지전송)

docker exec -it kafka kafka-console-producer --bootstrap-server kafka:9092 --topic create-coupon



컨슈머 (메세지 수신)

docker exec -it kafka kafka-console-consumer --bootstrap-server kafka:9092 --topic create-coupon --from-beginning

docker exec -it kafka /bin/kafka-console-consumer --bootstrap-server localhost:9092 --topic create-coupon --from-beginning --property print.key=true --property key.deserializer=org.apache.kafka.common.serialization.StringDeserializer --property value.deserializer=org.apache.kafka.common.serialization.LongDeserializer





package com.inflearn.kafka.repository;

import lombok.RequiredArgsConstructor;
import org.springframework.data.redis.core.RedisTemplate;
import org.springframework.stereotype.Repository;

@Repository
@RequiredArgsConstructor
public class CouponCountRepository {

    private final RedisTemplate<String, String> redisTemplate;

    public Long increment() {
        return redisTemplate.opsForValue().increment("coupon-count");
    }

    public void reset() {
        redisTemplate.opsForValue().set("coupon-count", "0");
    }

    public Long isCouponReceived(Long userId) {
        return redisTemplate.opsForSet().add("user", userId.toString());
    }

}



서비스 로직

package com.inflearn.kafka.service;

import com.inflearn.kafka.repository.CouponCreateProducer;
import com.inflearn.kafka.repository.CouponCountRepository;
import com.inflearn.kafka.repository.CouponRepository;
import lombok.RequiredArgsConstructor;
import lombok.extern.slf4j.Slf4j;
import org.springframework.stereotype.Service;

@Service
@Slf4j
@RequiredArgsConstructor
public class ApplyService {

    private final CouponRepository couponRepository;
    private final CouponCreateProducer couponCreateProducer;
    private final CouponCountRepository couponCountRepository;

    public void couponIssued(Long userId) {
        log.info("쿠폰 발급 서비스 시작");

        Long check = couponCountRepository.isCouponReceived(userId);
        if (check != 1) {
            return;
        }

        Long increment = couponCountRepository.increment();
        log.info("increment ={}", increment);

        if (increment > 100) {
            return;
        }

        couponCreateProducer.create(userId);
    }
}



이슈 1

(카프카 ui 사용으로 해결하는것이 더 좋을듯 하다.)

메세지 수신값을 콘솔 로그인에서 확인할때 Long값이 아니여서 터미널창에서 보이지 않음

프로듀서에서 String값으로 보낸 후 컨슈머에서 String값으로 메세지 수신으로 코드 수정



그후에 다시 기존설정값 Long으로 변경했지만 컨슈머에서 받지 못함

다른값이 저장된후 다시 변경하려면 토픽을 삭제하고 다시 설정해야함



docker exec -it kafka /bin/kafka-topics --bootstrap-server localhost:9092 --delete --topic create-coupon

docker exec -it kafka /bin/kafka-topics --bootstrap-server localhost:9092 --list

리스트 조회 시 아직 삭제안되있으면 연결되있는 프로듀서와 컨슈머를 종료시켜야한다.



docker exec -it kafka /bin/kafka-topics --bootstrap-server localhost:9092 --create --topic create-coupon --partitions 1 --replication-factor 1





나중에 보니 애초에 컨슈머 콘솔창 띄울때 long설정을 해주면 가능

docker exec -it kafka /bin/kafka-console-consumer --bootstrap-server localhost:9092 --topic create-coupon --from-beginning --property print.key=true --property key.deserializer=org.apache.kafka.common.serialization.StringDeserializer --property value.deserializer=org.apache.kafka.common.serialization.LongDeserializer

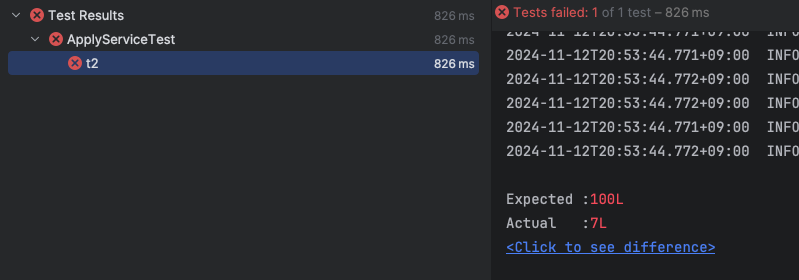

이슈 2

@Test
void t2() throws InterruptedException {
    int threadCount = 100;

    ExecutorService executorService = Executors.newFixedThreadPool(32);

    CountDownLatch countDownLatch = new CountDownLatch(threadCount);

    for (int i = 0; i < threadCount; i++) {
        Long userId = (long) i;
        executorService.execute(() -> {
            try {
                applyService.couponIssued(userId);
            } finally {
                countDownLatch.countDown();
            }
        });

    }

    countDownLatch.await();

    Thread.sleep(5000);

    couponCountRepository.reset();

    long count = couponRepository.count();
    assertThat(count).isEqualTo(100);
}





sleep을 5초 준 이유



카프카 -> 데이터베이스까지 흘러가는 시간을 고려해서 sleep 설정

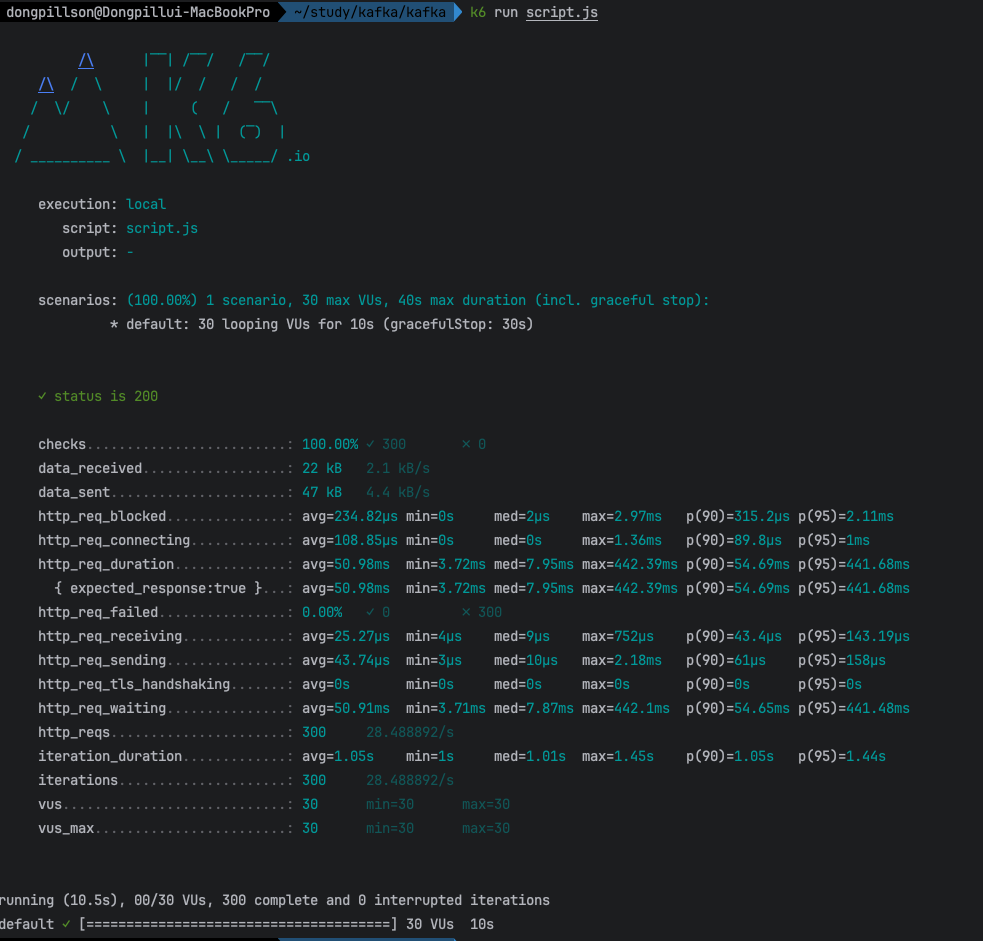

밑에 K6사용한 부하테스트 지표를 보면 알수있듯이 throughput = 28.4 이다.

테스트코드는 0.8초 안에 종료



k6 스크립트

import http from 'k6/http';
import { check, sleep } from 'k6';

export let options = {
  vus: 30,
  duration: '10s',
};

export default function () {
  const url = 'http://localhost:8080/api/coupon';

  const payload = JSON.stringify({
    userId: 1
  });

  const params = {
    headers: {
      'Content-Type': 'application/json',
    },
  };

  const res = http.post(url, payload, params);

  // 응답 검사
  check(res, {
    'status is 200': (r) => r.status === 200,
  });

  sleep(1);
}
